Flam Tool

A Studio Pro script for creating flam effect on MIDI notes.

Click for details

The Flam Tool script in this repository is a working example demonstrating:

• classfactory.xml with EditTask registration
• metainfo.xml with Package:SkinFile declaration
• skin.xml with DialogGroup, Slider, EditBox, CheckBox, Knob, and Label elements
• main.js with prepareEdit(), performEdit(), IParamObserver, and note manipulation

Source Code Files:

• classfactory.xml
• metainfo.xml
• main.js
• skin/skin.xml

⬇ Download Package

Overview

The Flam Tool duplicates selected MIDI notes and offsets them in time to create flam articulations. It provides control over timing, direction, and velocity of the primary or secondary note.

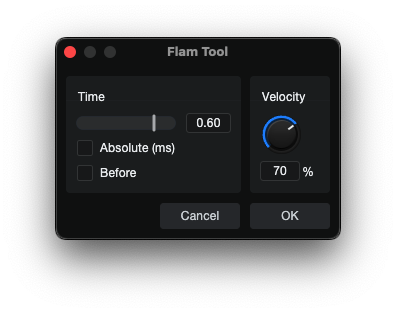

User Interface Controls

Time Slider

• Range: -1.0 to 1.0
• Description: Controls the magnitude and direction of the flam timing offset.
  • Negative values (-1.0 to 0): The original note shifts back (later in time), the new note stays at the original position.
  • Positive values (0 to 1.0): The new note shifts back (later in time), the original stays at the original position.

Absolute (Checkbox)

• Checked: Timing is measured in absolute milliseconds (ms).
• Unchecked: Timing is relative to the musical tempo (beats).

Before (Checkbox)

• Checked: Notes shift before their original position (earlier in time, toward the left in the editor).
• Unchecked: Notes shift after their original position (later in time, toward the right in the editor).

Velocity Knob

• Range: 1% to 100%
• Description: Sets the velocity of the secondary note as a percentage of the original note's velocity.

Value Calculations

Musical Mode (Absolute Unchecked)

The Time Slider value is mapped to a musical offset in beats:

Max shift = 0.25 beats (quarter note)
shift = timeSlider * 0.25

Time Slider	Shift (beats)	Note Value
±1.0	±0.25	Quarter note
±0.5	±0.125	Eighth note
±0.25	±0.0625	Sixteenth note
±0.125	±0.03125	Thirty-second note

Absolute Mode (Absolute Checked)

The Time Slider value is mapped to an offset in milliseconds, which is then converted to beats using the current tempo:

Max shift = 100ms
shiftMs = timeSlider * 100
shift = shiftMs * (tempo / 60000)

Time Slider	Shift (ms)	At 60 BPM (beats)	At 120 BPM (beats)
±1.0	±100 ms	±0.100	±0.200
±0.5	±50 ms	±0.050	±0.100
±0.25	±25 ms	±0.025	±0.050
±0.125	±12.5 ms	±0.0125	±0.025

Velocity Calculation

The secondary note's velocity is calculated as a percentage of the original note's original velocity:

newVelocity = originalVelocity * (velocityPercent / 100.0)

Example:

• Original note velocity: 100
• Velocity setting: 75%
• New note velocity: 100 * (75/100) = 75

Position Logic

The final start position for both notes is determined by combining the Time, Absolute, Before, and Before settings.

Before	Direction	Shift < 0 (slider left)	Shift > 0 (slider right)
Unchecked	Right	Original moves right, new note stays	New note moves right, original stays
Checked	Left	New note moves left, original stays	Original moves left, new note stays

Practical Examples:

1. Time = -0.25, Absolute = OFF, Before = OFF

   • Direction: Right (later)
   • Since shift < 0: Original note shifts right by 0.25 beats, new note stays at original position.

2. Time = -0.25, Absolute = OFF, Before = ON

   • Direction: Left (earlier)
   • Since shift < 0
   • New note moves left by 0.25 beats, original stays.

3. Time = 0.5, Absolute = ON, Tempo = 120 BPM, Before = ON

   • Shift = 0.5 * 100ms
   • Shift in beats = 50 * (120 / 60000)

Usage

1. Select notes in the Piano Editor, or ensure you have an Instrument Part open with notes (the script will process all notes if none are selected).
2. Run the Flam Tool script from the Action menu.
3. Configure the timing, direction, and velocity settings as desired.
4. Click OK to apply.
5. Use Undo (Cmd+Z) to revert if needed.

Tips

• Negative Time values keep the original note in place and move the duplicate, which is often the more natural-sounding flam.
• Use "Before" with positive Time to create "dragged" flams that precede the main note.
• Lower Velocity percentages (50-75%) create more realistic secondary flams that blend naturally.
• Absolute Mode is useful for consistent timing regardless of tempo changes.
